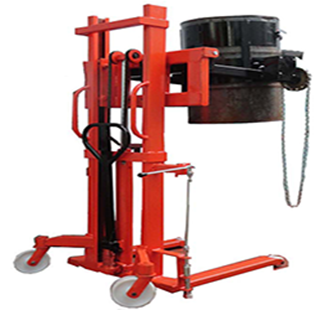

Drum Lifter & Tilter is suitable for lifting and tilting of standard 210 Ltr MS & HDPE Drums. The drum with the help of chain connected to the tilting attachment can be rotated 360º in the clockwise or anti clockwise direction. The tilting can be stopped at any required position.
Features:
Model No. | Max. Height of Bottom Drum (Vertical) | Max. Height of Bottom Drum (Horizontal) | Mast Min. Height | Mast Max. Height |
---|---|---|---|---|
A | F | B | ||
KG | MM | MM | MM | |
RIGID MAST | ||||
NIE-06-11(DLTS) | 1050 | 1190 | 1530 | |
NIE-06-13(DLTS) | 1300 | 1440 | 1780 | |
NIE-06-16(DLTS) | 1550 | 1690 | 2030 | |
TELESCOPIC MAST | ||||
NIE-06-20(DLTS) | 1990 | 2090 | 1530 | 2480 |
NIE-06-25(DLTS) | 2450 | 2590 | 1780 | 2980 |
NIE-06-30(DLTS) | 2950 | 3090 | 2030 | 3480 |
